Flanges

Flanges

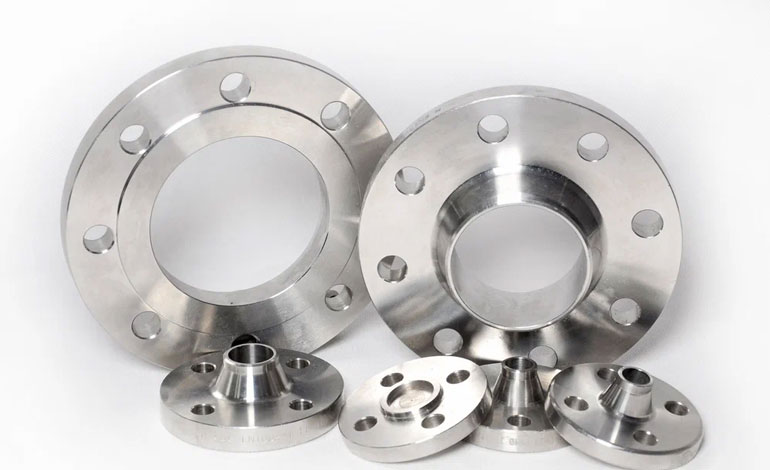

Our range of industrial flanges are ideal for application in diverse industry for high pressure and temperature applications. These flanges are designed with precision for easy installation. Apart from standard flanges, we also offer custom designed flanges to meet the specific application requirements of the customers

Specification/ Dimension of Slip On flanges 150 Lbs

Drilling
Nominal Bore Dia.(D) Thick.(E) Dia.(F) Dia.(B) Dia.(A) Height1(H) Nbr Holes Dia.(C)
1/2″ 90 9.6 35.05 30 22.2 14 4 15.87 60.3
3/4″ 100 11.2 42.93 38 27.7 14 4 15.87 69.9
1″ 110 12.7 50.80 49 34.5 16 4 15.87 79.4
1 1/4″ 115 14.3 63.50 59 43.2 19 4 15.87 88.9
1 1/2″ 125 15.9 73.15 65 49.5 21 4 15.87 98.4
2″ 150 17.5 91.95 78 61.9 24 4 19.05 120.7
2 1/2″ 180 20.7 104.65 90 74.6 27 4 19.05 139.7
3″ 190 22.3 127.00 108 90.7 29 4 19.05 152.4
3 1/2″ 215 22.3 139.70 122 103.4 30 8 19.05 177.8
4″ 230 22.3 157.22 135 116.1 32 8 19.05 190.5
5″ 255 22.3 185.67 164 143.8 35 8 22.22 215.9
6″ 280 23.9 215.90 192 170.7 38 8 22.22 241.3
8″ 345 27.0 269.75 246 221.5 43 8 22.22 298.5
10″ 405 28.6 323.85 305 276.2 48 12 25.40 362.0
12″ 485 30.2 381.00 365 327.0 54 12 25.40 431.8
14″ 535 33.4 412.75 400 359.2 56 12 28.57 476.3
16″ 595 35.0 469.90 457 410.5 62 16 28.57 539.8
18″ 635 38.1 533.40 505 461.8 67 16 31.75 577.9
20″ 700 41.3 584.20 559 513.1 71 20 31.75 635.0
24″ 815 46.1 692.15 663 616.0 81 20 34.92 74

Stainless Steel

ASTM A182 & A240 - TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L
Titanum

ASTM B381 Gr 1, 2, 3, 5 (6AL - 4V), 7, 9, 11, 12, 23 (6AL -4V ELI)
High Nickel Alloys

ASTM B564 / B335 / B649 / B462 / B151 - Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy 20 & Cupro Nickel
Duplex

ASTM A182 / UNS S31803 & S32205 (2205)
Super Duplex

ASTM A182 / UNS S32750 (2507) & S32760.
TEST CERTIFICATES

MTC, IBR & Third Party Inspection



Stainless & Duplex Steel Flanges

Grade :
Duplex 2205, LDX 2101, Super Duplex 2507, Zeron 100, Duplex2304, AL-6XN, 904/L, 254 SMO, 253 MA®, 321, 409, 330, 347, 309/S, 310/S, 317/L, 304, 304/L, 304H, 316/L, 316H, 333, 410/S, 430, 15-5PH, 17-4PH, 17-7PH, Alloy 20
Range :
15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400

Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing , Spectacle ,Slip On Boss , Plate , Plate Blank , Screwed Boss.

Stainless Steel :
ASTM / ASME SA 182 F 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L , 316 LN , 317 , 317L , 321 , 321H , 347H .

Duplex Steel :
ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.

Nickel Flanges

Range :
15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400

Grade :
Nickel 200 (UNS No.2200), Nickel 201 (UNS No.2201), Nickel 205 (UNS N0.2205)

Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing , Spectacle ,Slip On Boss , Plate , Plate Blank , Screwed Boss

Nickel Alloy :
ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ) , UNS 4400 (MONEL 400 ) , , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 ( INCONEL 601 ) , UNS 6625 (INCONEL 625) ,UNS 10276 ( HASTELLOY C 276) ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ) ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 ).



Hastelloy Flanges

Size :
1/2"NB to 12"NB

Grade :
C276(UNS N10276), C22(UNS N06022), b-2(UNS N010665), b-3(UNS N010675), X(UNS N06002)

Standard :
ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

Types :
Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint.

Features :
Durability Corrosion resistance Dimensional accuracy High strength Excellent finish



Inconel Flanges

Size :
1/2 inch - 48 inch (15mm - 1200mm)

Grade :
600(UNS N06600), 601(UNS N06601), 625(UNS N06625), 718(UNS N07718)

Standard :
ANSI/ASME B16.5, ANSI B16.47 API, DIN, JIS, BS

Types :
Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint

Features :
Durability Corrosion resistance Dimensional accuracy High strength Excellent finish
