IBR Products

IBR Products

Indian Boiler Regulation or IBR is an independent body that provides boiler manufacturing guidelines in India and regulates it. Indian Boiler Regulation falls under the IBR act 1950. This law is accepted all over India except Jammu & Kashmir. The IBR is basically a construction code that specifies the design, material, fabrication, inspection, and testing requirements for boiler and boiler-connected parts for use in India.

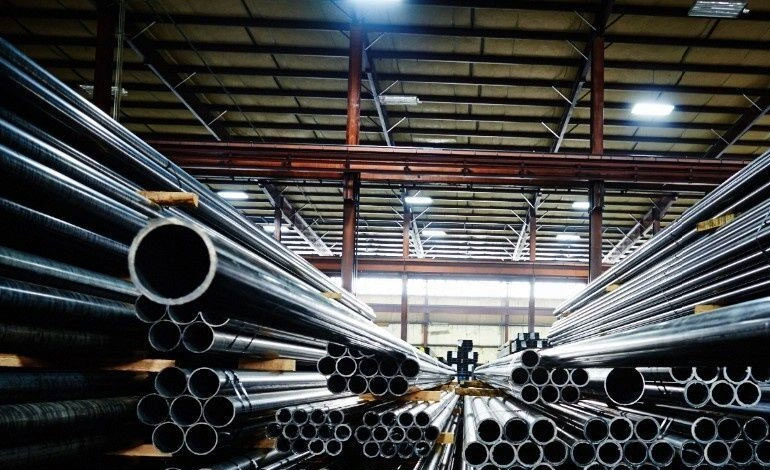

IBR Pipe

Size : 1/2"NB TO 24"NB IN
Schedule : SCH20, SCH30, SCH40, STD, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless
Length : Single Random, Double Random & Cut Length.
End : Plain End, Beveled end, Treaded.
MATERIALS
IBR Stainless Steel Pipes
ASTM 312 / 213 - TP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347

IBR Carbon Steel Pipe

ASTM A 53, A106 Gr. B, API 5L GR.B, API 5L X 42.

IBR LTCS Pipe
ASTM A333 Gr.6

IBR Alloy Steel Pipe
ASTM / ASME A/SA 335 Gr. P 1, P 5, P 9, P 11, P 12, P 22, P 91 IBR Buttweld Fittings
Size : 1/2"NB TO 14"NB IN
Schedule : SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless
Form : Elbow, Tee, Reducer, Cap, Stubend, Bends, Nipple etc.

Materials
IBR Carbon Steel Fitting
ASTM A 234 WPB

IBR LTCS Fittings
A420WPL6

IBR Alloy Steel Fitting
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

IBR Flanges
Size : 1/2"NB TO 60"NB IN
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

Type

  • IBR Weld Neck (WNRF)
  • IBR  Socket Weld (SWRF)
  • IBR  Slip On (SORF)
  • IBR Blind (BLRF)
  • IBR Lap Joint
  • IBR Screwed (Threaded)
  • IBR Long Weld Neck
  • IBR Reducing
  • IBR Ring Joint
  • IBR Orifice
  • IBR Girth Flange

SPECIFICATIONS AS PER THE INTERNATIONAL STANDARD ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

Materials

IBR Alloy Steel Flanges
ASTM SA 182 F1/F5/F9/F11/F22/F91

IBR Carbon Steel Flanges
ASTMA 105 Gr. F42/46/52/56/60/65/70

IBR LTCS Flanges
A350 LF2/A350 LF3

IBR Forged Fittings
Size : 1/4"NB TO 4"NB IN

Class : 3000 LBS, 6000 LBS, 9000 LBS

Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT

Materials

IBR Alloy Steel Forged Fitting
ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91

IBR Carbon Steel Forged Fitting
ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70

IBR LTCS Forged Fittings
A350 LF3/A350 LF2

IBR Outlets
Size : 1/4"NB TO 24"NB IN

Class : 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule

Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT

Outlet’s

  • Weldolet
  • Sockolet
  • Elbowlet
  • Thredolet
  • Nipolet
  • Letrolet
  • Swepolet
