Wiremesh
Wiremesh

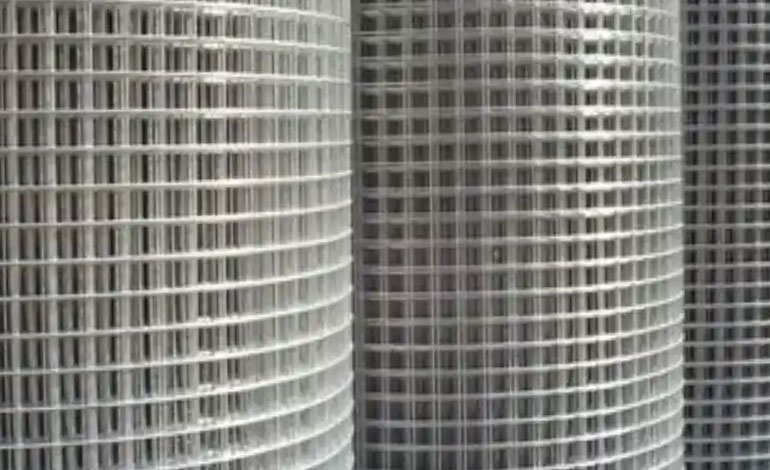

We offer wide range of Wire Cloth with varied aperture sizes and weaves. Their texture also varies from being fine, soft and flexible as silk to as rigid as steel plate. They are available in rolls or in cut circles and also as fabricated filters. On request, we can also provide the same in some other metals like Monel, Nickel, Hastelloy, phosphorous Bronze, Copper and Brass. As a result, we have carved a niche for ourselves as one of the most prominent Wire Mesh Manufacturer, Importer & Exporter. Material : Stainless steel AISI 304, 304L, 316, 316L, G.I., Copper, Phos.Bronze, Aluminium and Brass.
Grades of Stainless Steel Wire
| Stainless Steel Wire Mesh Size | Stainless Steel Wire Gauge Diameter | ||
|---|---|---|---|
| Sizes in mm | In Inch | BWG No. | Sizes in mm |
| 6.4 | 1/4 | BWG24-22 | 0.56- 0.71 |
| 9.5 | 3/8 | BWG23-19 | 0.64 - 1.07 |
| 12.7 | 1/2 | BWG22-16 | 0.71 - 1.65 |
| 15.9 | 5/8 | BWG21-16 | 0.81 - 1.65 |
| 19.1 | 3/4 | BWG21-16 | 0.81 - 1.65 |
| 25.4x 12.7 | 1 x 1/2 | BWG21-16 | 0.81 - 1.65 |
| 25.4 | 1 | BWG21-14 | 0.81 - 2.11 |
| 38.1 | 1 1/2 | BWG19-14 | 1.07 - 2.11 |
| 25.4 x 50.8 | 1 x 2 | BWG17-14 | 1.47 - 2.11 |
| 50.8 | 2 | BWG16-12 | 1.65 - 2.77 |
| 50.8 to 305 | 2 to 12 | At Request | |
SQUARE MESH / FINE MESH
The most commonly used weave. Openings are square. Each weft wire passes alternately over and under each warp wire and vice versa. Warp and weft wire diameters are generally the same. It produces screens with the same mesh count in both directions.
Plain weave meshes are available with apertures from 10.7mm (2 mesh) to 0.05mm (325 mesh). Suitable for many commercial applications.
TWILL WEAVE (TW)
Twill weave can be made from larger diameter wires than would be possible in plain square weave to obtain greater strength, density, or corrosion resistance. This weave is stronger than plain weave. Each weft wire alternately crosses over two, then under two, warp wires producing a diagonal pattern. The wire diameter for both warp and weft is normally the same.
Twill weave is usually used to accommodate a heavier than standard wire diameter in association with a given mesh.
